Simple Power Failure Detector Circuit Diagram

| |

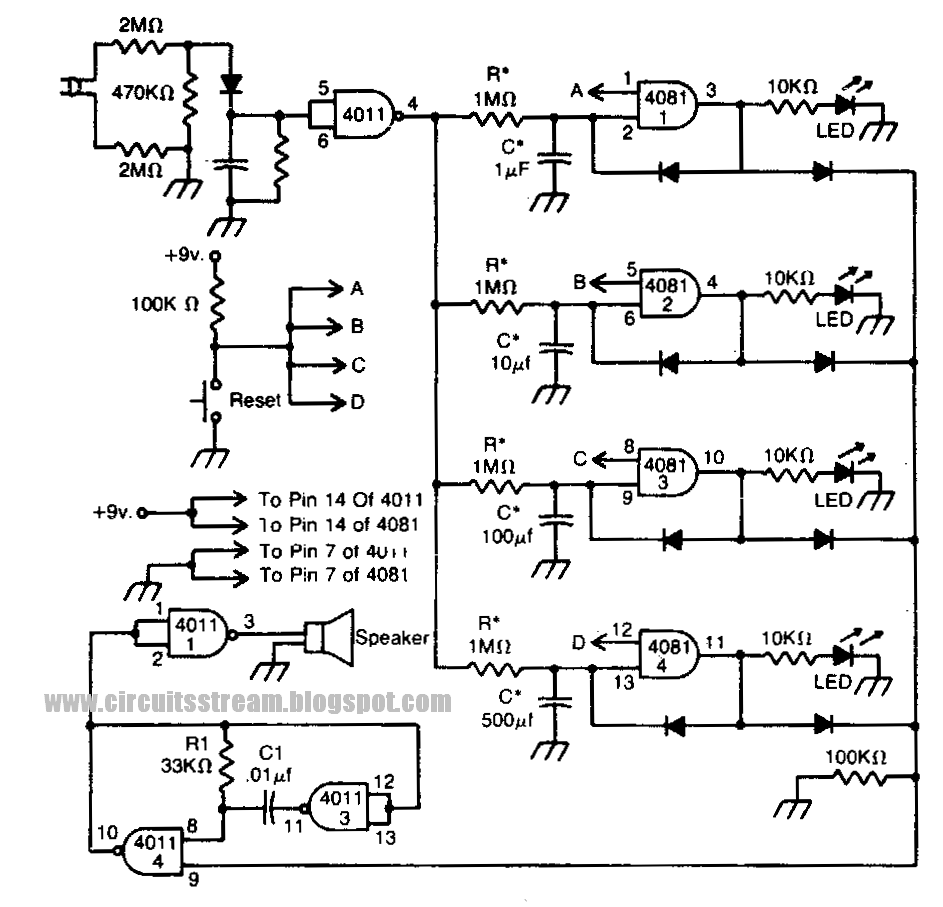

Simple Power Failure Detector Circuit Diagram. This circuit indicates that a power outage occurred for 1, 10, 100, and 500 seconds with the values given for R* and C* . After a power failure, the circuit can be reset by pushing the Reset button.
